GE40-XL-KRR-B

INA Insert ball bearing

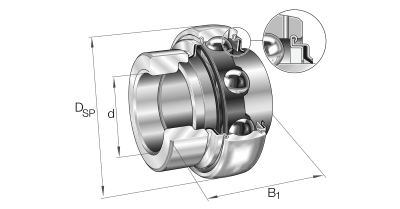

INA Insert ball bearing :: GE40-XL-KRR-B
INA Insert ball bearing :: GE40-XL-KRR-B :: 1 INA Insert ball bearing :: GE40-XL-KRR-B :: 2

In stock

Our advantages

BLACK FRIDAY DEAL 10% OFF EVERYTHING!

700+ reviews: 4.9 / 5.0

Secure ordering and payment

Specifications

Article number
GE40-XL-KRR-B
Type
Insert bearing
Weight
0,73 kg
Brand
INA
Dimensions
Dsp=80 / B=42,9 / C=21 / C2=23,5 / D1=68,3 / d1=52,3 / Ca=6,4 / B1=56,5 / d3max=58 / S=21,4 / W=5 / mm
Diameter
40 mm
Dynamic radial load
34,5 kN
Static radial load
19,8 kN
EAN Code
4012802783698

In stock
